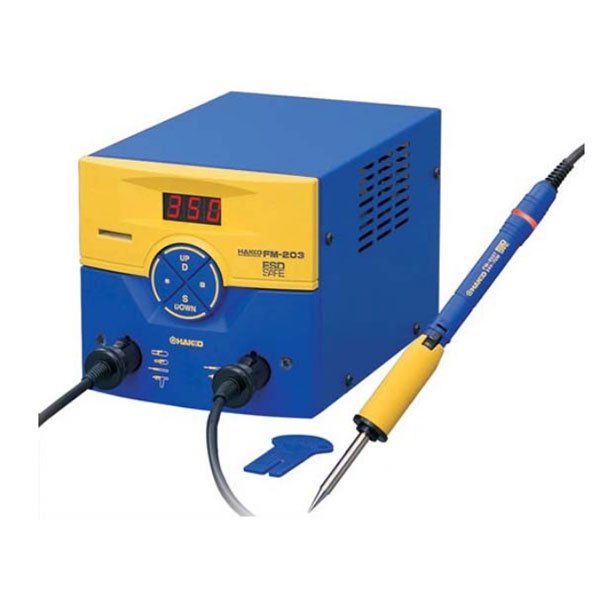

Image for Illustrative Purposes Only
Hakko FM-203 Multi Station
SKU: HFM203-15
FM203-15
DESCRIPTION
Features
Includes
Specifications
Shipping & Delivery
Hakko FM-203 Multi Station
A single station plays multiple roles: Soldering, desoldering, and SMD rework.
NOTE: T12 SOLDERING TIPS NOT INCLUDED - AVAILABLE TO PURCHASE HERE
Discover the Hakko FM-203 Multi Station at Mektronics Australia – your trusted source for quality tools and equipment!
- Two handpieces can be selected in various combinations. This station is equipped with one HAKKO FM-2027 handpiece.
- A wide range of handpiece selection
- Poweful thermal recovery performance
- Power save function
- Sleep function: While the handpiece is being placed on the iron holder (HAKKO FH-200), the sleep function is activated and decreases the temperature of tip on the holder up to approximately 200°C , preventing the tip from being oxidized. In addition, this function can relieve the load applied to the tip due to the high-temperature settings required for lead-free soldering.
- Auto power shut-off function: By connecting the iron holder (HAKKO FH-200) and station with the connecting cable, the auto power shut-off function is activated in the same manner as the sleep function.
- Combined use with an optional handpiece (HAKKO FM-2026, etc.) enables use of the N2system
- Buzzer ON/OFF setting is available: Whether to make the buzzer sound or not when an error occurs or a target temperature is reached is settable.
-
HAKKO FM-203 Station
-
Soldering iron (HAKKO FM-2027)
-
Control card
-
Heat resistant pad
-
Iron holder (No. FH200-01: with HAKKO 599B tip cleaner)
-
Tip tray
-
Power cord
-
Connecting cable
-
Instruction manual: 1 for each
Power consumption | 140W |
Temperature range | FM-2026/2027:200 to 450ºC FM-2022/2023:200 to 400ºC FM-2024:350 to 450ºC FM-2032:200 to 450ºC |
Temperature stability | ±5ºC at idle temperature |
Station | |
Output voltage | AC 24V |
Dimensions (W x H x D) | 120 x 120 x 190 mm |
Weight | 2.7kg |
Soldering Iron | |
Power consumption | 70W (24V) |
Tip to ground resistance | <2Ω |
Tip to ground potential | <2mV |
Heating element | Composite heater |
Cord length | 1.2m |
Total length | 188mm (with 2.4D tip) |
Weight | 30g (with 2.4D tip) |
* Total length and weight (w/o cord)
Please note - we only sell genuine Hakko
