Hakko FR-410 Desoldering Station

FR-410-17
SKU
HFR410-17
$1,470.00 Special Price $1,617.00 $1,662.90 Regular Price $1,829.19
Availability: In stock

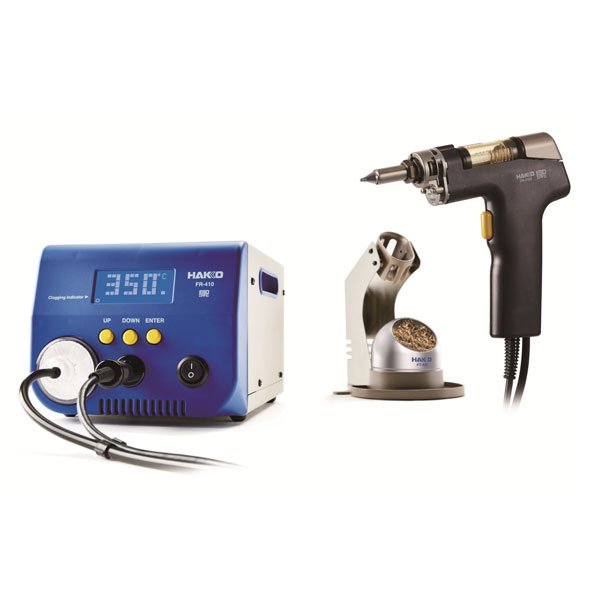

Hakko FR-410 Soldering Station Overview

  • Desoldering tool with built-in vacuum pump
  • 140 W high power enables perfect desoldering on multi-layer PWB
  • New type nozzle can fit onto micro land patterns and narrow space
  • Separate nozzle and heater ensure running cost advantage for you

Hakko FR-410 Desoldering Station Features

  • 140 W high powers enable perfect desoldering for the components on multi-layer PWB
    Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.
  • A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works.
    Applicable to even micro lands, components in a narrow space or flat type terminals on the PWB of downsized devices like mobile phone.
  • Secure desoldering, valve function that suctions with high pressure
    Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.
  • Reduction of solder clogging
    • Improvement in heating core
      Heating ability for backside of heating core is increased to ensure suctioned solder be carried to filter pipe and avoid solder clogging.
    • Featuring ACF (Anti Clogging Function)
      ACF (Anti Clogging Function) ensures suctioned solder be carried to filter pipe by keeping the pump running for a certain period of time (1 to 5 seconds) automatically after releasing trigger.
  • Improvement in maintainability
    • The dedicated wrench allows safe, easy and smooth nozzle replacement.
    • Easy heater replacement by removing 3 screws on the part of heating core.
    • Larger filer and more transparency
      Filter size has been increased to protect the pump from contaminants, and transparent filter cover allows quick visual check of the filter condition.
    • FR-410 comes with a tool box that contains of maintenance tools to keep nozzles and heater in a good condition.
  • Featuring a large LCD display
    Very easy to see temperature on the large LCD display
    Vacuum indicator to check clogging

Hakko FR-410 Desoldering Station Includes

  • Station
  • Desoldering tool (FR-4101)
  • Power cord
  • Iron holder (with cleaning wire)
  • Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4])
  • Instruction manual
Hakko FR-410 Desoldering Station Specifications
Power consumption 190W
Temperature range 330 to 450ºC
Temperature stability         ±5ºC at idle temperature
Station
Output voltage AC 24V
Vacuum generator Vacuum pump, double cylinder type
Vacuum pressure Max. 80kPa (600mmHg)
Suction flow 15L/min.
Dimensions 165(W)×137(H)×244(D)mm
Weight 4.8kg
Desoldering Tool
Power consumption 140W (24V)
Nozzle to ground resistance <2Ω
Nozzle to ground potential <2mV
Heating element Composite heater
Standard nozzle Φ1.0mm S type (No.N61-05)
Cord length 1.2m
Total length 168mm (with Φ1.0mm S type nozzle)
Weight 170g (with Φ1.0mm S type nozzle)
