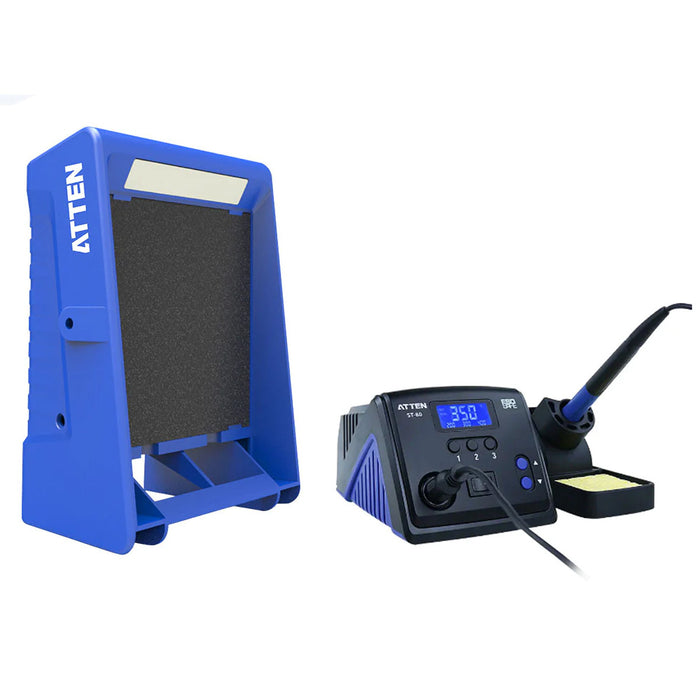

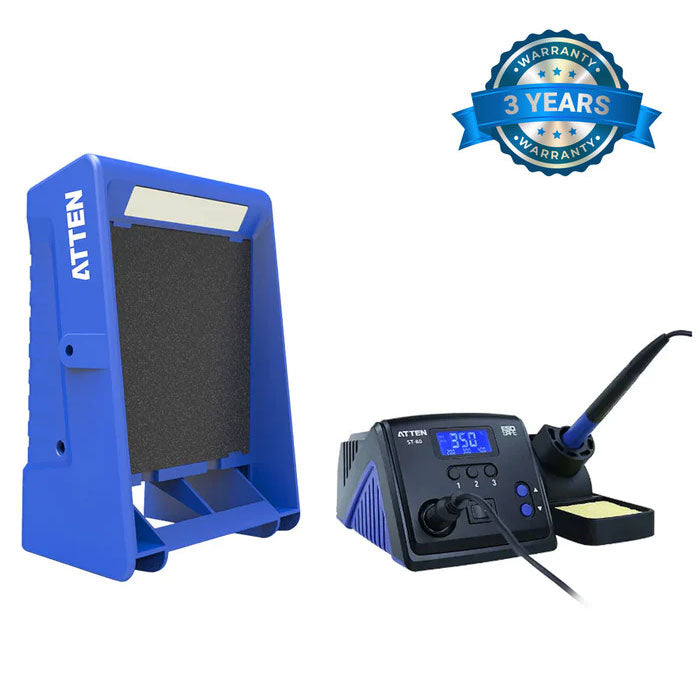

Atten ST-80 Soldering Station & ST-1016 Smoke Absorber Bundle
SKU: ATTST-1016B
ATTST-1016B
Features
Shipping & Delivery
Atten ST-80 Soldering Station
Overview
-
Temperature locking.
-
Beep alarm function available.
-
MCU controlled temperature calibration.
-
User-friendly menu enables system setting easier.
-
Separate iron stand to save room and to make easier deposit.
-
Buttons(1,2,3) for pre-setting or switching frequently used temperature.
-
Low-voltage heater separated from power supply to keep soldering safer
NOTE: ADDITIONAL TIPS AVAILABLE TO PURCHASE HERE
Features
-
Temperature read out in ℃ and ℉.
-
Simulate bar indicating heating up status.
-
Easy temperature setting.
-
New design with LCD display screen making control visualization.
-
Soldering tip designed separate from heater and using exchangeable 900M series to save use-cost.
-
3 groups shortcut temperature. Storing and retrieving temperature values quickly.
-
Smart recognition of working or non-working status.
-
Automatic standby, shutdown with smart time setting.
-
Temperature Lock Function.
-
Temperature calibration ±50℃/±90℉.
-
Beep alarm function available.
-
Fault alarm function: E-0, E-1, E-2.
Includes
| Soldering station | ST-80 |
| Soldering Iron | 1 Unit |
| Iron holder | 1 pc |
| Power cord |
1 pc |
| Sponge |
1 pc |
| Manual | 1 copy |
Specifications
|
Model |
ST-80 |
|
Power consumption |
80W |
|
Input voltage |
110VAC/220VAC ±10% 50Hz/60Hz |
|
Output voltage |
28VAC |
|
Display method |
LCD |
|
Temperature range |
150℃~480℃/302℉~896℉ |
|
Temperature offset range |
±50℃ (±90℉) |
|
Temperature stability |
±2℃ at idle temperature |
|
Tip to ground resistance |
<2Ω |
|
Tip to ground potential |
<2mV |
|
Auto-sleep |
0~120 minutes |
|
Auto turn off the heating |
0~120 minutes |
Atten ST-1016 Smoke Absorber
Overview
This product is a Desktop-type Fume Extractor, can be operated vertically or horizontally, can remove soldering smoke and fumes quickly, safely and quickly. Activated carbon filter is made of highly activated carbon, strong absorb, and has LED lighting function.
Features
-
Desktop-type with vertical and horizontal dual-use
-
Remove soldering smoke and fumes quickly and safely
-
Highly activated carbon material with strong absorb function
-
Led lighting function
Specifications
| Model | ST-1016 |
| Power consumption |
110V AC/60Hz/22W 220V AC/50Hz/16W |
| Maximum suction capacity |
1.03m³/min |
| Dimensions | 103.3*161.8*217.2mm |
| Filter size |
142*142*10mm |
Resources
