Image for Illustrative Purposes Only

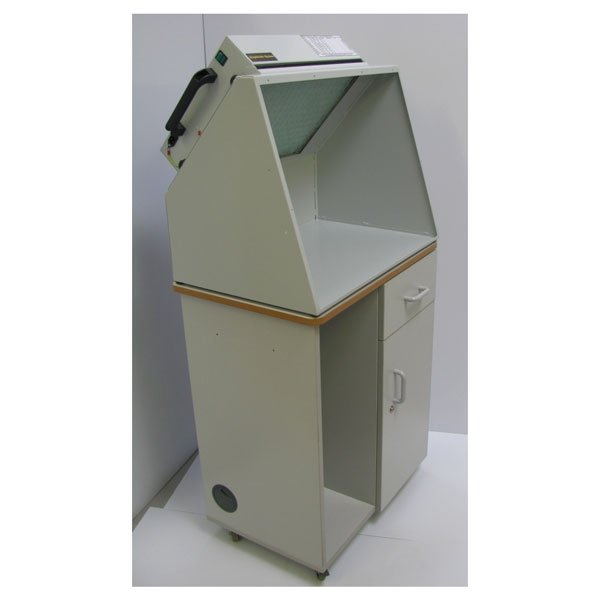

BenchVent Portable Fume Cabinet (Hood 930x680mm) PBV930H-C
SKU: BVPBV930H-C
PBV930H-C
DESCRIPTION
Applications
Features
Inclusions
Specifications
Shipping & Delivery

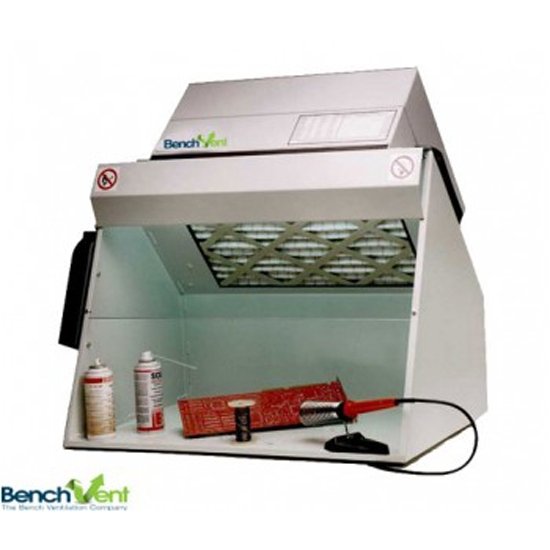

BenchVent Portable Fume Cabinet (Hood 930x680mm) PBV930H-C
The BV930H-C is large dual-speed hood mounted filtration cabinet with high-efficiency carbon filter. It is designed to offer local exhaust ventilation for large projects, and where external venting isn't practical. This unit is suitable for use in dental & medical laboratories, pharmaceutical labs, school science laboratories, design and research laboratories and electronic manufacturing.
Apart from filtration, the BV930H-D also provides operators with a safe workstation, as handling of all the potential harmful chemicals is done within the hood enclosure in front of the the intake filter area. For artwork applications, the enclosure can accommodate a standard A1 drawing boards, which will git at an angle so the unit captures the oversrpay efficiently, keeping the surrounding working area clean.
The BV930H-D fume cabinet is designed for immediate operator protection . If outside venting isn't possible, BenchVent also offers recirculatory fume cabinets such as the BV660H-C and BV930H-C. Both units have higher filtration specifications.
** ADDITIONAL CHARGES MAY APPLY FOR AIR FREIGHT & BULKY ITEMS **
Discover the BenchVent Portable Fume Cabinet (Hood 930x680mm) PBV930H-C at Mektronics Australia – your trusted source for quality tools and equipment!
The PBV930H-C is suitable to filter fumes, vapours and particulates from:
- Spray Adhesives
- Conformal coatings (thin polymer film usually used to coat circuit boards)
- Paints
- Monomers
- Resin
- Sealants
- Solders
- Light Grinding
- Organic Solvents
- Cleaners
- Other hazardous powders and particulates
- Quiet in operation
- Can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on.
- Filter unit with fan(s)
- Hood Enclosure
- Hood Light
- Polycarbonate hinged front panel
- 1 x Particulate filter
- 1 x Activated Carbon Filter
- Power Lead
- 4 direction wheels - 2 locking

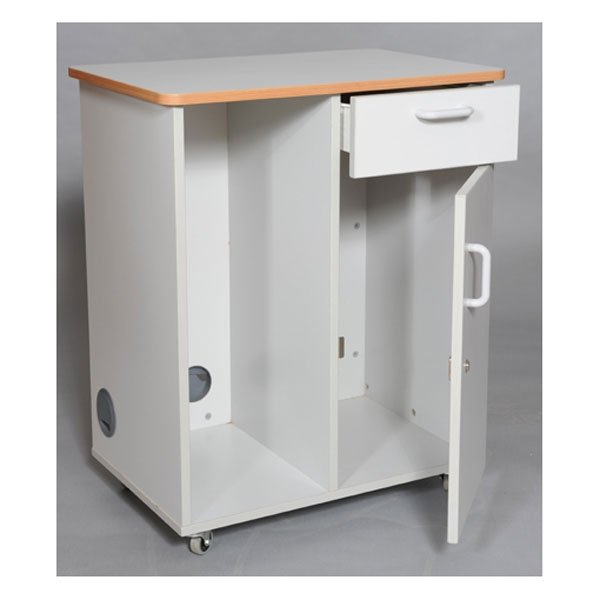

- Storage drawer and lockable cupboard
- separate storage for ancillary equipment
- Data/Warranty Booklet
Download the datasheet for more information: BV930H-C Datasheet
Lifetime Guarantee
All BenchVent filtration and extraction systems carry a lifetime guarantee.
The particulate (intake) filter is a three stage graduated fibre filter with a high 'dust' holding capacity for long life. Filtration to 5 micron particles. (Optional EPA filters available to approx 0.3micron particles). This is followed by a high grade bonded carbon filter. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated.
|
General Specification |
|
|
Dimensions |
960x660x620 (wxhxd) [internal] 960x740x720 (wxhxd) [overall] |
|
Description |
Steel construction finished in dove grey - fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting - particulate (intake) filter - bonded carbon filter - 2 x centrifugal blowers, external rotor motor type brushless, UL, VDE and CSA approved - sealed electricals, downstream of filters. |
|
Technical Specification |
|
|
Air Volume at Free Air |
710m3/hr |
|
Ave. Air Velocity at Filter Face |
0.57m/sec (0.40m/sec slow setting) |
|
Ave. Air Velocity at Hood Face |
0.50m/sec (0.39m/sec slow setting) |
|
Fan Motor Spec |
230V, 50Hz, 210W |
|
Filters |
Particle Filter: IFA2 - Carbon Filter: AC100 - Optional EPA Filter: HE705 |
